You've measured twice, cut once, and your wall panels are looking great — but something still feels unfinished. Nine times out of ten, the culprit is the same: missing or mismatched wall panel trims. These slim, often-overlooked accessories are what separate a DIY installation that looks homemade from one that looks like a tradesperson spent a day on it. Whether you're fitting PVC panels in a bathroom, cladding a kitchen splashback, or mounting acoustic panels in a home office, the right trims tie everything together and protect the edges for years to come. This guide walks you through exactly which accessories you need, where they go, and why skipping them is always a mistake.
Why Wall Panel Trims Matter More Than You Think
It's tempting to treat trims as optional extras — a few extra pounds on top of your panel spend. In reality, they do several important jobs at once:
- They hide raw edges. Cut panel edges are rarely perfectly clean, especially on textured or foamed PVC. A trim covers the cut and presents a neat, factory-style line.
- They seal against moisture. In bathrooms and kitchens, exposed panel edges can allow water to track behind the panels over time. Corner and end cap trims close those gaps.
- They create defined transitions. Where a panel meets a window reveal, a door frame, or a different wall surface, a trim creates a deliberate, intentional boundary rather than an awkward gap.
- They hold panels in place. Some trims act as channels, holding panel edges firm without additional fixings — particularly useful on larger panels.
Think of trims the way a decorator thinks about masking tape lines: the finish is only as good as the edges.
The Core Trims Every DIYer Should Know
Internal Corner Trim
Used wherever two panels meet in an inside corner — the most common join in any room. An internal corner trim slides over both panel edges to create a clean, watertight V-shaped channel. Without it, you're left trying to butt two panels together perfectly, which almost never works flush, especially as walls are rarely truly square. Fitting an internal corner trim removes that problem entirely and looks intentional rather than improvised.

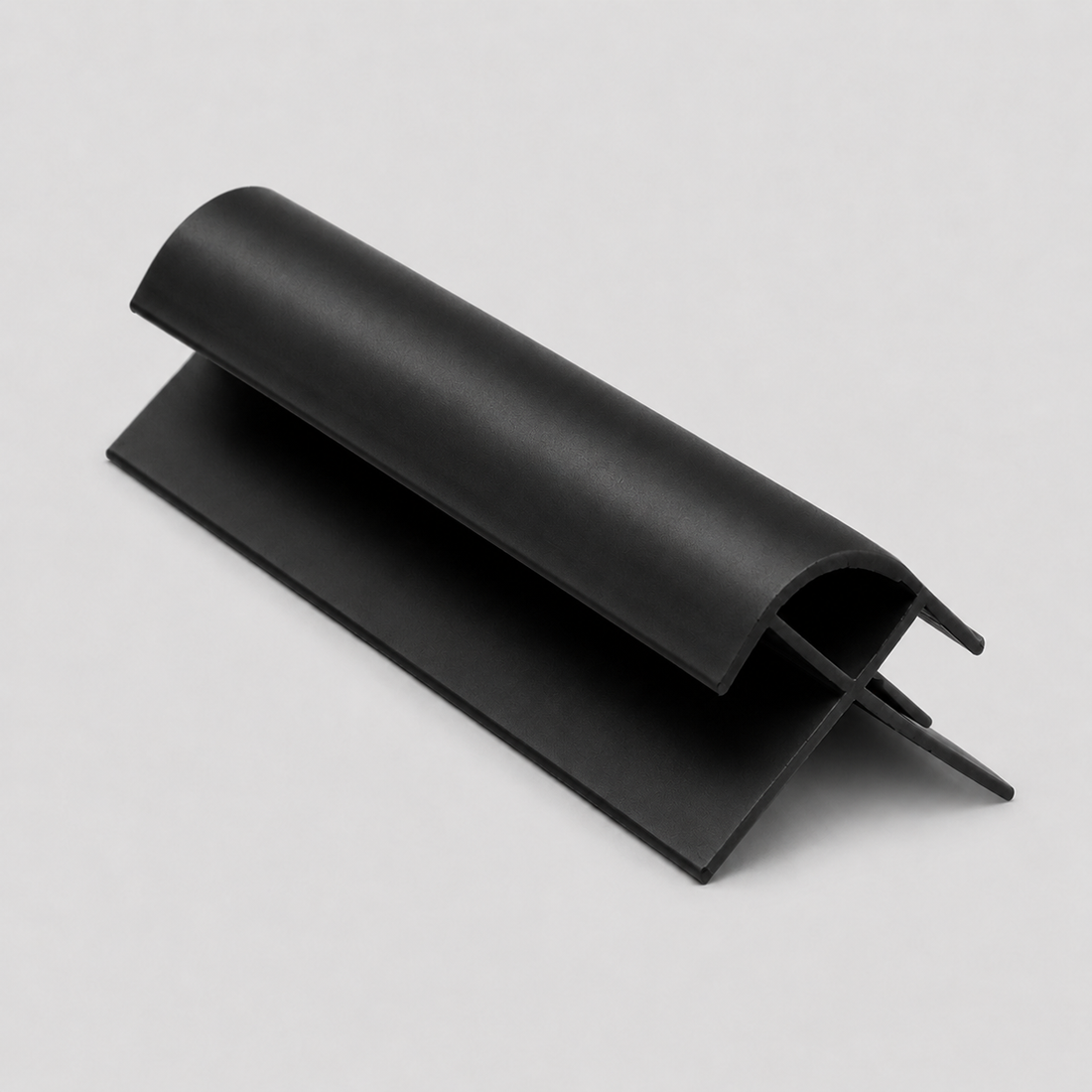

External Corner Trim
The opposite situation: where panels wrap around an outside corner, such as a chimney breast, a bath panel edge, or a kitchen island. An external corner trim caps both exposed edges neatly and protects them from knocks and chips — outside corners take more physical wear than internal ones, so the protection here is as important as the appearance.
End Cap Trim (or Straight Edge Trim)
When a run of panels simply stops — at a door frame, a window reveal, or the end of a feature wall — an end cap trim finishes the final panel's exposed edge. It's a flat-profile trim that slots over the panel edge and presents a tidy termination point. Without it, you'll see the cross-section of the panel, which on foamed PVC in particular can look quite rough.
H-Section Joining Trim
When two panels need to join end-to-end on a flat wall — common on longer walls or when mixing panel lengths — an H-section trim bridges the gap and holds both edges in a neat, recessed channel. It creates a deliberate shadow line that can actually enhance the look of the wall rather than hide a compromise.
Acoustic Panel Trim: A Slightly Different Beast
Acoustic wall panels have their own trimming requirements. Because they're typically thicker than PVC cladding panels and often have a fabric or felt-style face, the trim profiles used need to accommodate greater depth and present a frame-like finish rather than a flush channel.
Acoustic panel trim is designed to sit proud of the wall surface and frame each panel — or a group of panels — like a picture frame. This both protects the edges of the acoustic material (which can fray or compress if left exposed) and gives the installation a considered, designed appearance. If you're fitting acoustic panels in a home studio, office, or living room, investing in matching trim profiles is what lifts the result from functional to genuinely stylish.
Don't Forget Panel Adhesive
Trims need to go somewhere, and while some clip or slide into place, most benefit from being bonded as well as mechanically fixed. Panel adhesive is formulated to bond PVC and composite panels to a range of substrates — plasterboard, tile backer board, existing tiles — without the off-gassing that can occur with standard solvent-based adhesives, which can craze or melt some PVC products.
A good panel adhesive applied in a serpentine bead gives excellent coverage without air pockets, and combined with temporary support (offcuts wedged in place while the adhesive cures) produces a bond that outlasts the panels themselves. It's also the right product for bonding trim channels to the wall before the panels go in — fixing trims first, then sliding panels into them, is almost always the better sequence.
Browse the full range of wall panel accessories including adhesive at PanelDeals to find the right products for your project.
The Right Order: How to Plan Your Trim Installation
Getting the sequence right makes the whole job smoother. Here's a simple approach that works for most DIY panel installations:
- Mark out your panel layout first. Know where every panel edge will fall before you fix anything.
- Fix your starting trim. If you're beginning at a corner, fit the internal corner trim first. If starting against a frame or edge, fit the end cap or straight-edge trim.
- Work panel by panel. Slide each panel into the fixed trim, bond and fix it, then fit the next trim before the next panel.
- Finish with external corners and end caps. These go on last as they cap the already-fitted panels.
- Seal where needed. In wet areas, a thin bead of silicone along any trim-to-wall junction adds a final layer of waterproofing.
Planning your trim and accessories order at the same time as your panels means no second trips to the supplier mid-job.
Matching Trims to Your Panels
One practical tip that catches many first-time panel fitters out: trims come in different profile sizes to match different panel thicknesses. A trim designed for 5mm PVC cladding won't fit snugly on a 10mm acoustic panel, and a loose-fitting trim looks worse than no trim at all. Always check the panel thickness in your product specification and match your trim profile accordingly.
Colour-matching matters too. Most reputable suppliers offer trims in white, chrome, brushed silver, and black as a minimum. For coloured or wood-effect panels, a white or matching-tone trim tends to work best — contrasting trims can look intentional if done boldly, but mismatched trims that were simply 'what was in stock' rarely do.
Explore the full accessories range at PanelDeals to find trims that match your specific panels.
Frequently Asked Questions
Do I need wall panel trims if I'm tiling over the panels?
If you're tiling directly over panels (less common but possible with certain substrates), you may be able to use tile trim instead of panel trim at exposed edges. However, at internal and external corners between panel runs, panel-specific trims are still the tidier solution, as they're designed around the panel thickness rather than the tile thickness.
Can I use standard silicone sealant instead of a corner trim?
Silicone alone at a corner is rarely a good substitute for an internal or external corner trim. Silicone fills gaps but doesn't provide structure, and over time in a bathroom environment it can discolour, peel, or grow mould at the joint. A proper corner trim combined with a thin silicone bead behind it gives you structure and a watertight seal.
What's the difference between panel adhesive and grab adhesive?
General-purpose grab adhesives can contain solvents that attack or craze PVC panels. Panel adhesive is formulated specifically to be safe on PVC and foam-core composite panels — it bonds strongly without damaging the panel face. Always check the adhesive is stated as compatible with PVC before use.
How do I cut PVC trim neatly?
A fine-toothed saw (a mitre saw or even a junior hacksaw) cuts PVC trim cleanly. Score and snap can work on thinner profiles but tends to leave a rougher edge. For mitred corners on external corner trim, a mitre box set to 45° gives the best result. Sand any rough edges lightly with fine-grit paper before fitting.
Do acoustic panel trims work the same way as PVC panel trims?
The principle is the same — covering edges, creating neat transitions — but acoustic panel trim profiles are typically deeper to accommodate the greater panel thickness, and they're often designed to frame panels rather than simply cap edges. Check the profile dimensions against your acoustic panel thickness before ordering.
Should I fit trims before or after the panels?
For most installations, fitting the starting trims first and then sliding panels into them is the better approach. End caps and external corner trims usually go on last, after the panels are fixed. This sequence means you don't have to force panels into tight spaces after trims are fitted on both sides.
Get the Professional Finish Your Panels Deserve
The panels do the heavy lifting visually, but the trims are what make an installation look like it was done by someone who knew exactly what they were doing. Budgeting for the right wall panel trims and accessories from the start — internal corner trim, external corner trim, end caps, and panel adhesive — saves time, prevents rework, and produces a result you'll actually be proud of.
