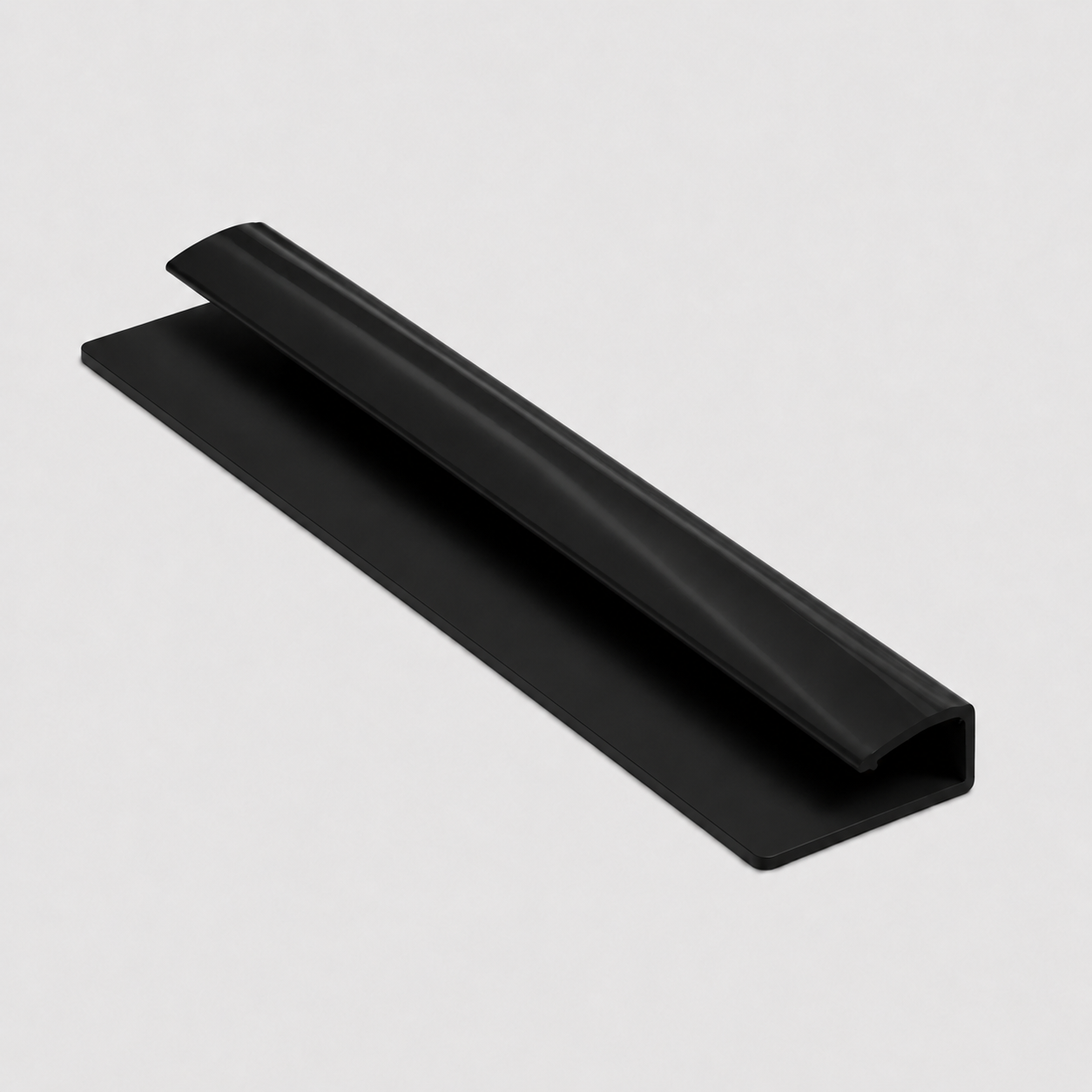

• End cap PVC wall panel trim - black

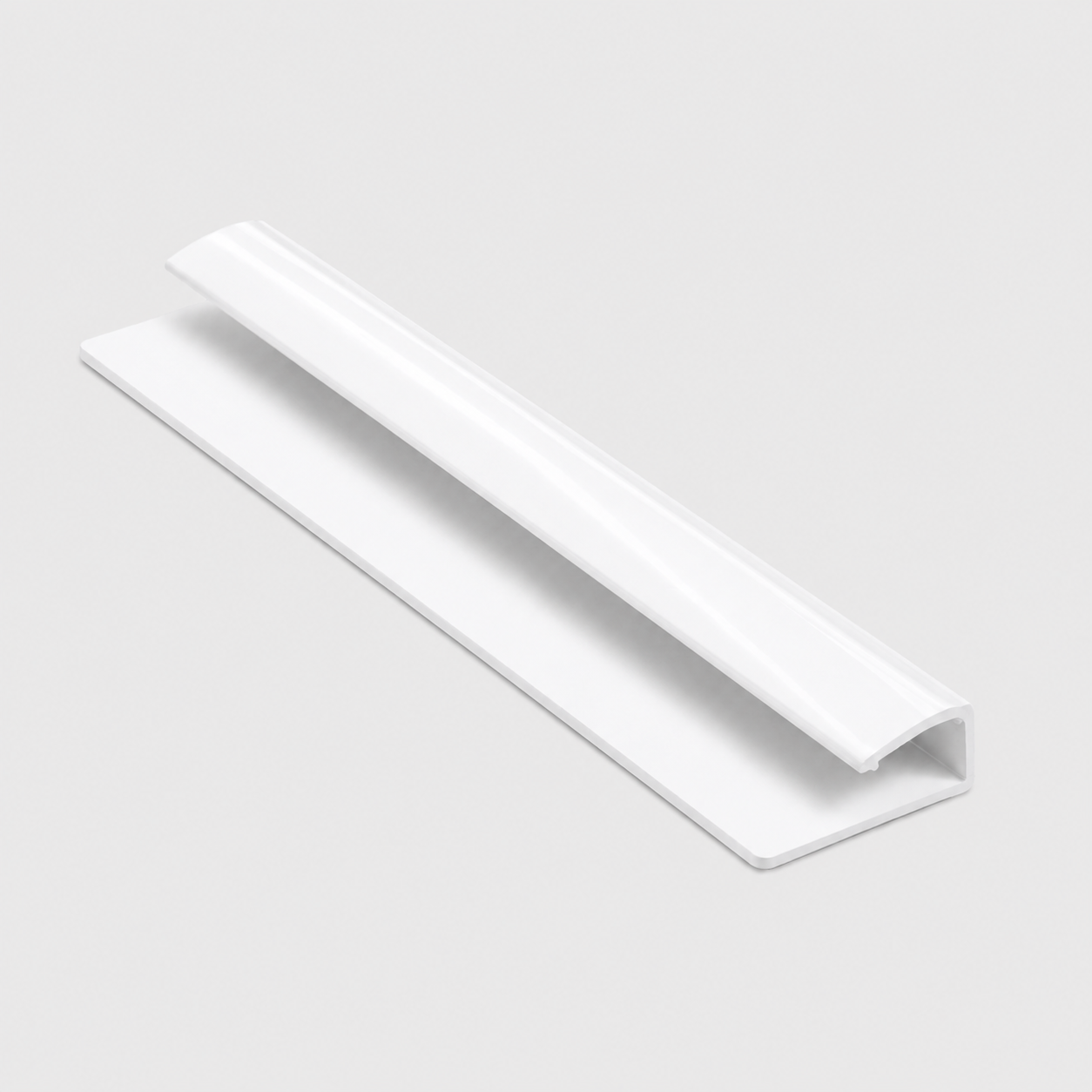

  • End cap PVC wall panel trim - white

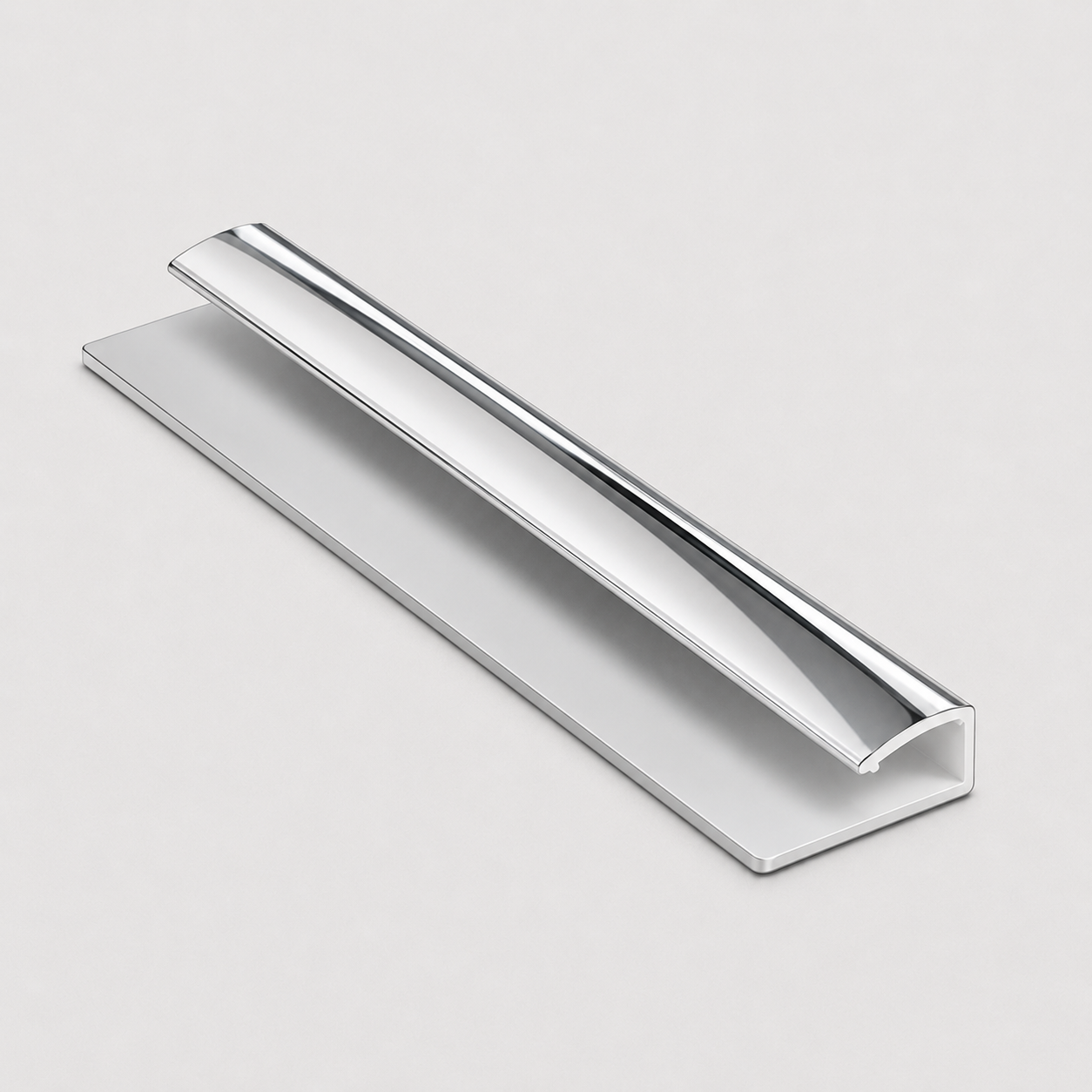

  • End cap PVC wall panel trim - chrome silver
1 3

PVC Wall Panel End Cap | 5mm, 8mm, 10mm | Black, White, Chrome

PVC Wall Panel End Cap | 5mm, 8mm, 10mm | Black, White, Chrome

£14.50
£14.50
Sold out
Tax included.
Finish exposed panel edges cleanlyThe PVC Wall Panel End Cap Trim is for any free-standing edge of a panel run — where panels stop without meeting another wall, ceiling or...

Color
Thickness PVC Panel
Vendor: PanelDeals
Category: PVC Wall Panels
Tags: coving end cap external corner internal corner joint trim pvc panel trims TRIMS

Shipping

We dispatch most products within 1 working day, with delivery usually arriving within 2–3 working days, excluding remote areas. PVC panels and accessories can take up to 3 weeks depending on your area, so please contact us before ordering PVC panels. Enter your postcode at checkout for an accurate delivery cost.

Returns

You can easily return any purchase within 30 days. For full details, check our delivery and returns policy.

Secure Payment

Shop with total confidence. We use Shopify Payments exclusively for fast, safe checkouts across all devices.

View full product details

Finish exposed panel edges cleanly

The PVC Wall Panel End Cap Trim is for any free-standing edge of a panel run — where panels stop without meeting another wall, ceiling or floor. The trim covers the cut edge, prevents water tracking behind, and gives a clean, intentional finish to half-height panelling, partial coverage and feature walls.

What it does

  • Covers exposed panel edges on free-standing wall ends
  • Watertight seal when bedded in silicone
  • Hides cut edges from view, including any small saw imperfections
  • Available in Black, White, Chrome
  • 5mm, 8mm, 10mm thicknesses

Where to use

  • Half-height panelling — caps the top edge where panels stop and paint begins
  • Feature wall ends — where panels finish before reaching an external corner
  • Window reveals — finishes the panel edge against the window frame
  • Door reveals — where panels meet a door architrave
  • Bath edge transitions — finishing the panel edge along the top of a bath

Specifications

  • Length: 5mm & 8mm trims: 2600mm | 10mm trims: 2400mm
  • Profile: U-shape, slips over the cut edge of a single panel
  • Material: PVC
  • Thickness: 5mm, 8mm, 10mm
  • Colour: Black, White, Chrome

How many do I need?

Count any panel edge that doesn't meet another wall, panel, ceiling or floor. Common counts: 2 for a feature wall (top and one side), 4 for half-height panelling around a bathroom (one along each top edge).

Install

  1. Apply silicone inside the U-channel of the trim
  2. Slide the trim over the panel edge as the panel is fitted (or before fitting if accessible)
  3. Press firmly, wipe excess silicone immediately

FAQs

Can I use this instead of internal corner trim?
No — different jobs. Internal corner is for two panels meeting at 90°. End cap is for a single panel edge with nothing on the other side.

How is it different from coving?
Coving is for the ceiling-to-wall transition (top edge of full-height panels). End cap is for any other free-standing edge.

Match my panel thickness?
Yes — exactly. The trim fits snugly over the panel; wrong thickness leaves a gap.

Pair with

Internal corner trim · External corner trim · Coving · All PVC trims
